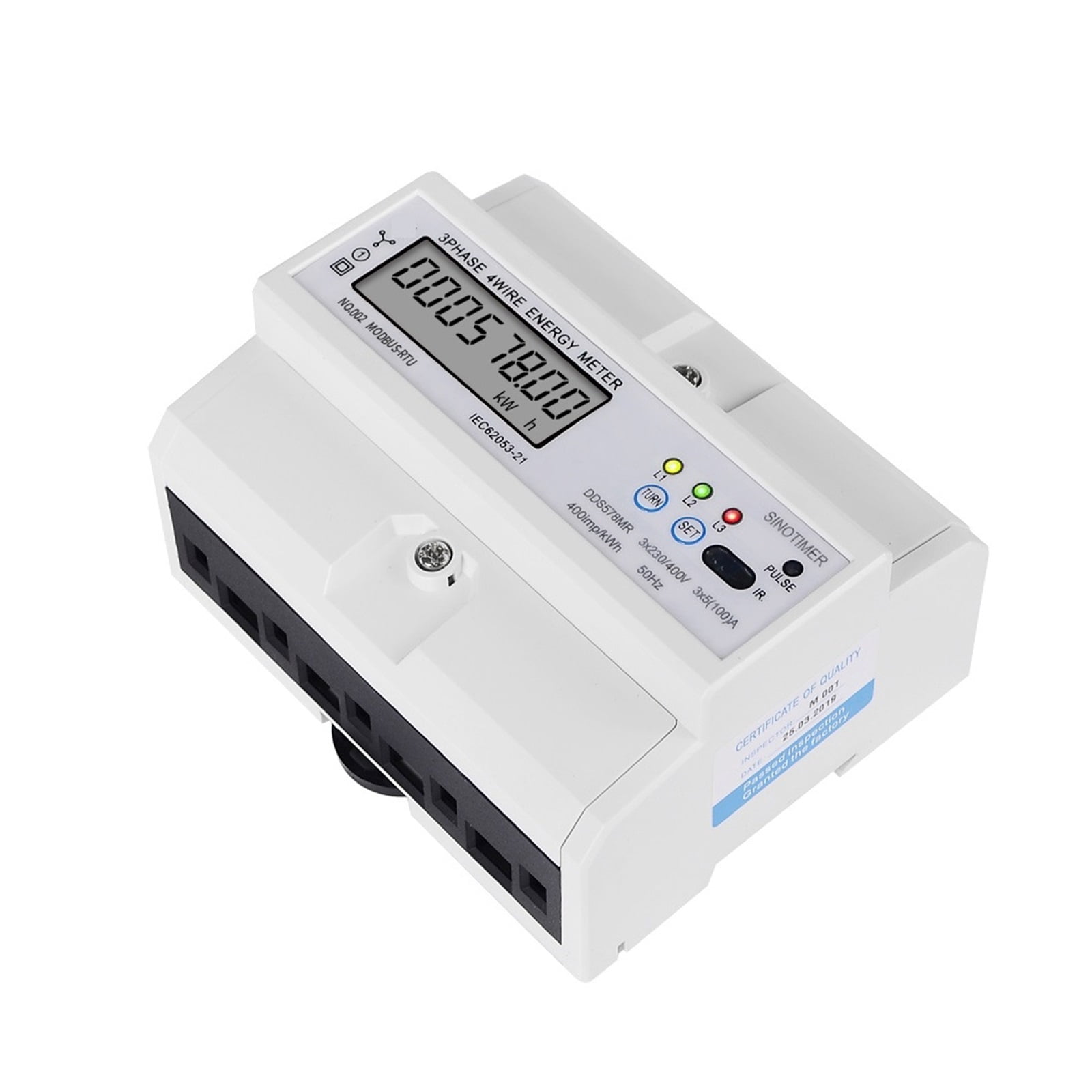

5-100A 3 Phase 4 Wire DIN Rail Energy Meter Digital Power Factor Monitor With Voltage Current Frequency Display Power Consumption Monitor ,Overload Protection

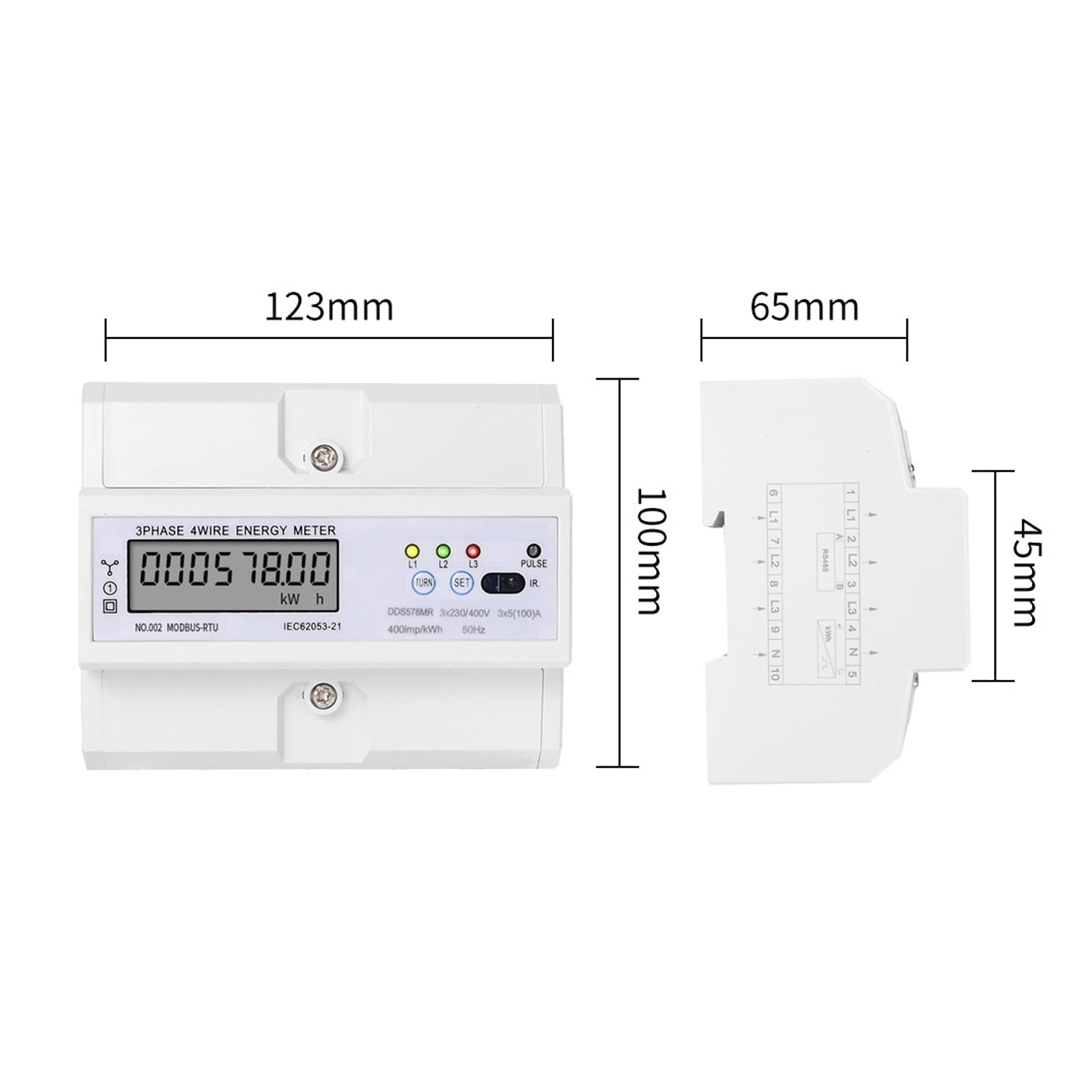

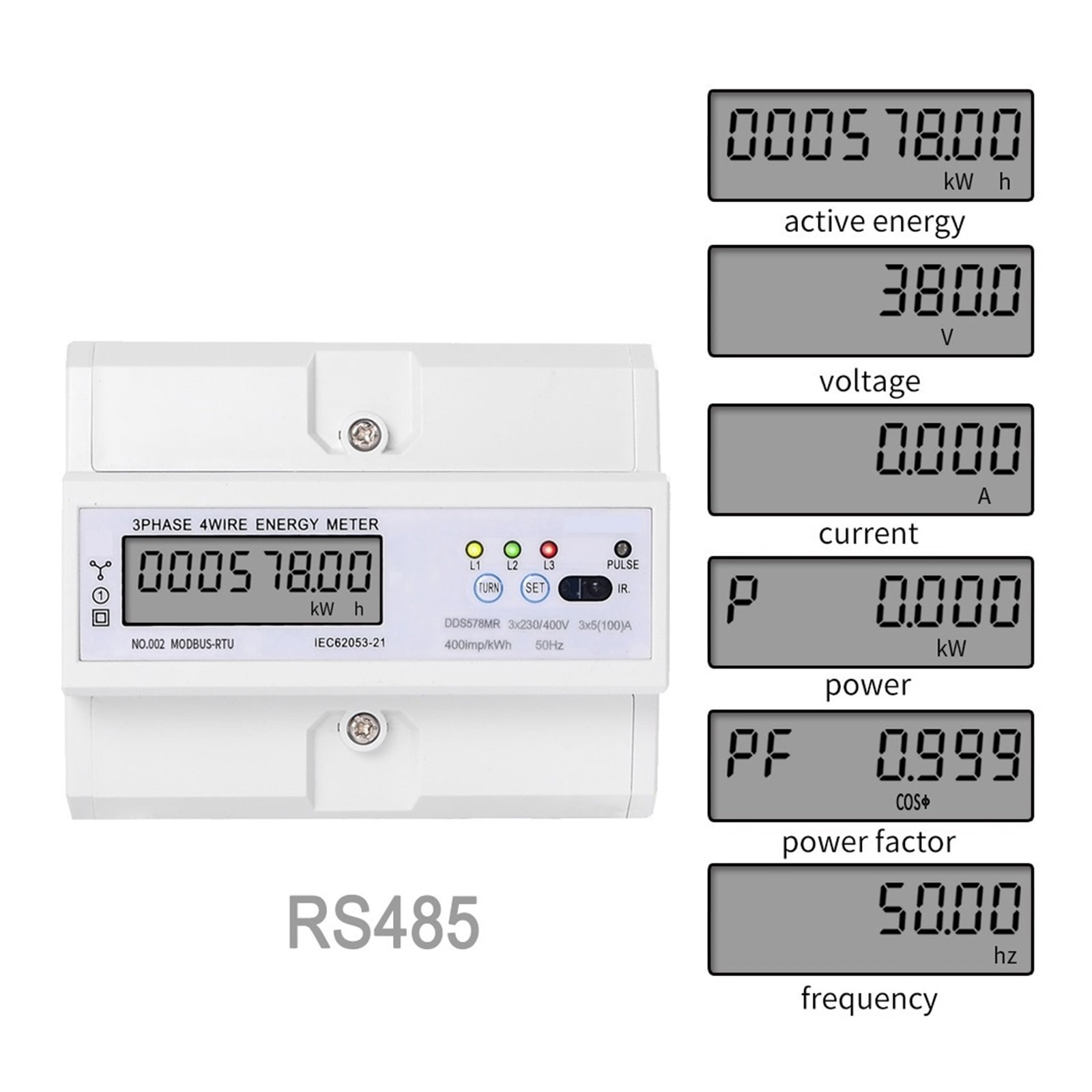

<p>Parameters:</p><p>Reference Current: 3 X 5(100)ARated </p><p>Measuring Energy Range: 99999.9 </p><p>Power Supply: AC </p><p>Phase: Three Phase </p><p>Dimensions: 123*65*100mm </p><p>Operating Temperature: -10 to 50 Celsius </p><p>Accuracy Class: 1 </p><p>Max Operating Current: 80A - 99A </p><p>Installation: 35mm DIN Rail </p><p>Constant Pulse: 400imp / kWh </p><p>Display: LCD 6 + 1Power Consumption: 2W, 10VA</p><p>Installation:35mm DIN railThe meter is multifunctional rotation display Energy KWh , Voltage , Current , Power , Frequency and Power Factor.</p><p>Related Products:home energy monitor,energy monitor,smart home energy monitor,home power monitor,home energy monitoring system,electricity usage monitor smart,whole home energy monitor,electricity monitor,energy monitoring system,smart energy monitor,sense energy monitor,power monitor,energy monitoring,energy meter,whole house power monitor,power consumption monitor,power usage monitor</p>

• 6+1 digits LCD display shows the total power consumption.
• It features high reliability, small volume, light weight, beautiful appearance, advanced technology

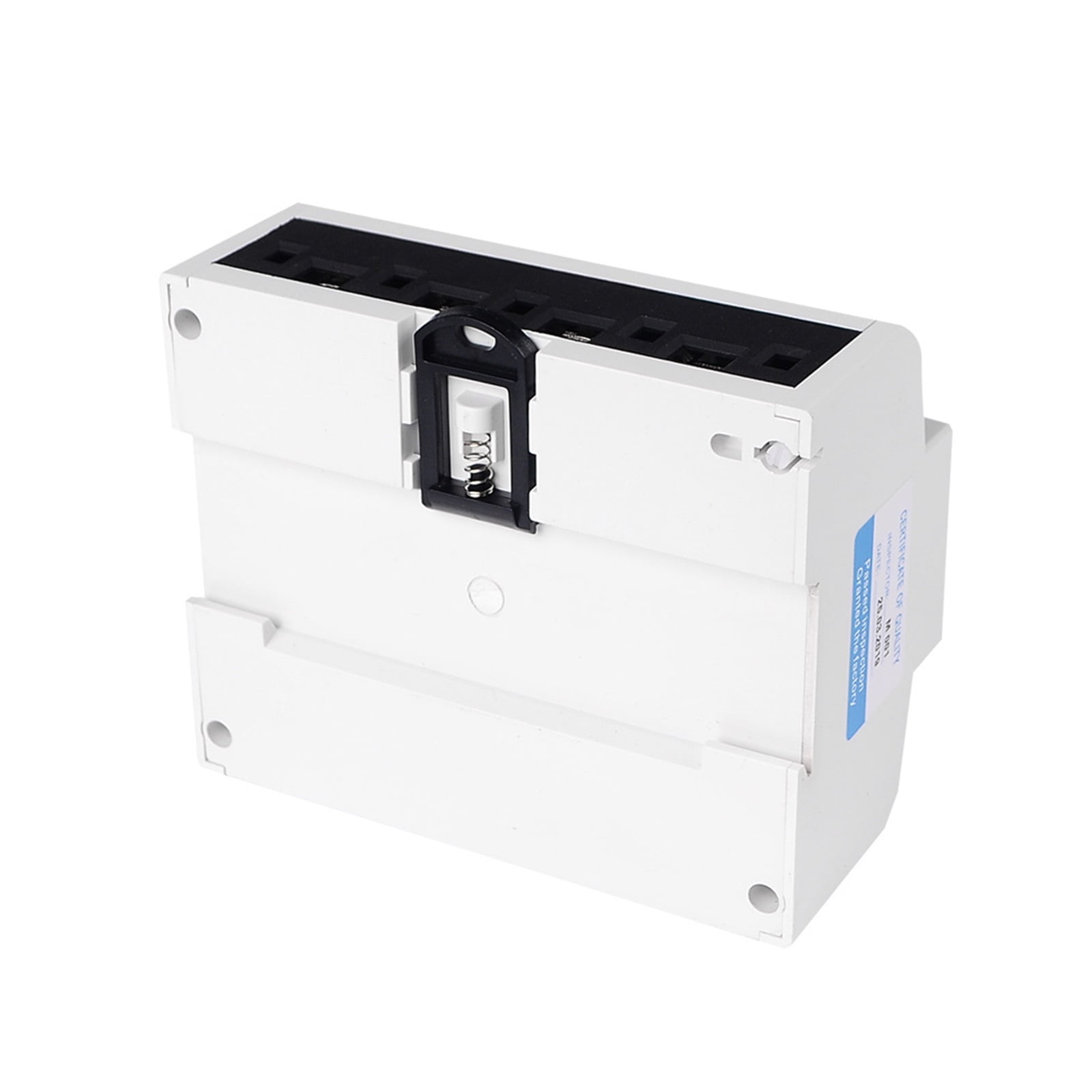

• Standard 35mm din Rail installation, easy and convenient.
• It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.
• This table is suitable for the measurement of rated frequency 50 H, z single-phase ac active electricity, used for fixed installation indoors.
